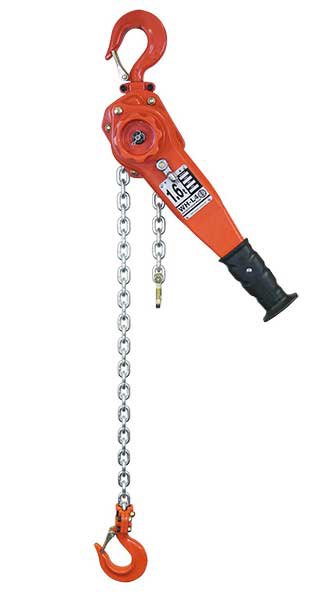

William Hackett WHL4 Lever Hoist

The Hackett WH L4 lever hoist meets and exceeds the requirements of the following international standards:

British and European Standard BS EN13157:2004 + AI:2009
American Standard ASME B30.21-2014
Australian Standard AS1418.2-1997
South African Standard SANS 1636:2-2007
NORSOK R-002: 2017.

The design and specification of the William Hackett WH-L4 lever hoist includes:

WORKING LOAD LIMIT RANGE: 800kg to 15 tonnes.
LIGHT LOAD CAPABILITY: the WH L4 is tested and certified at 2% of the lever hoist rated capacity.
TWIN PAWL: double safety; fitted as standard.
SAFETY LATCHES: the WH L4 lever hoist top and bottom hooks are fitted with heavy duty cast steel latches. The latch and hook tips are integrated creating a strong and robust hook closure.
HOOK OVERLOAD AND TRACEABILITY MARKS: hooks have overload indicator marks either side of the hook throat (500kg to 10t). Both top and bottom hooks are embossed with a batch code, manufacturer's mark and the working load limit for full traceability and compliance to international standards.
HOOK HOUSING: secured with socket head cap screws/hex head bolts and nyloc locking nuts to allow full inspection.
FLEETING/CROSS HAULING: the WH L4 lever hoists are tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration.
LOAD CHAIN: the WH L4 lever hoists are fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8).
TEMPERATURE RANGE: -20°C to +120°C
PROOF TESTED: 800kg to 10 tonne hoists are proof tested to 1.5 times the Working Load Limit. 15 tonne hoists are proof tested to 1.25 times the Working Load Limit.
OVERLOAD LIMITER: available as an option upon request.
TOP AND BOTTOM HOOK ADAPTORS: available as an option upon request.
TRAVELLING END STOP: available as an option upon request.
MANUFACTURED AND PROOF TESTED in the U.K.
