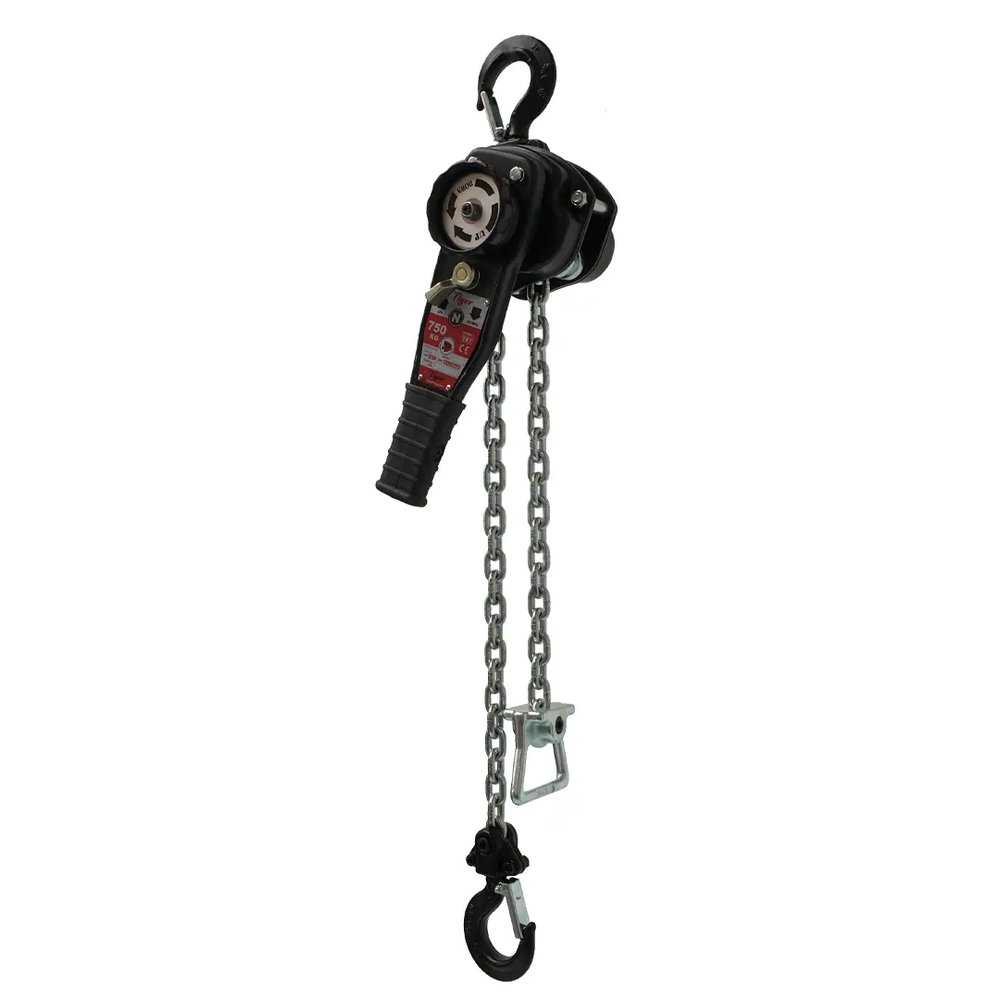

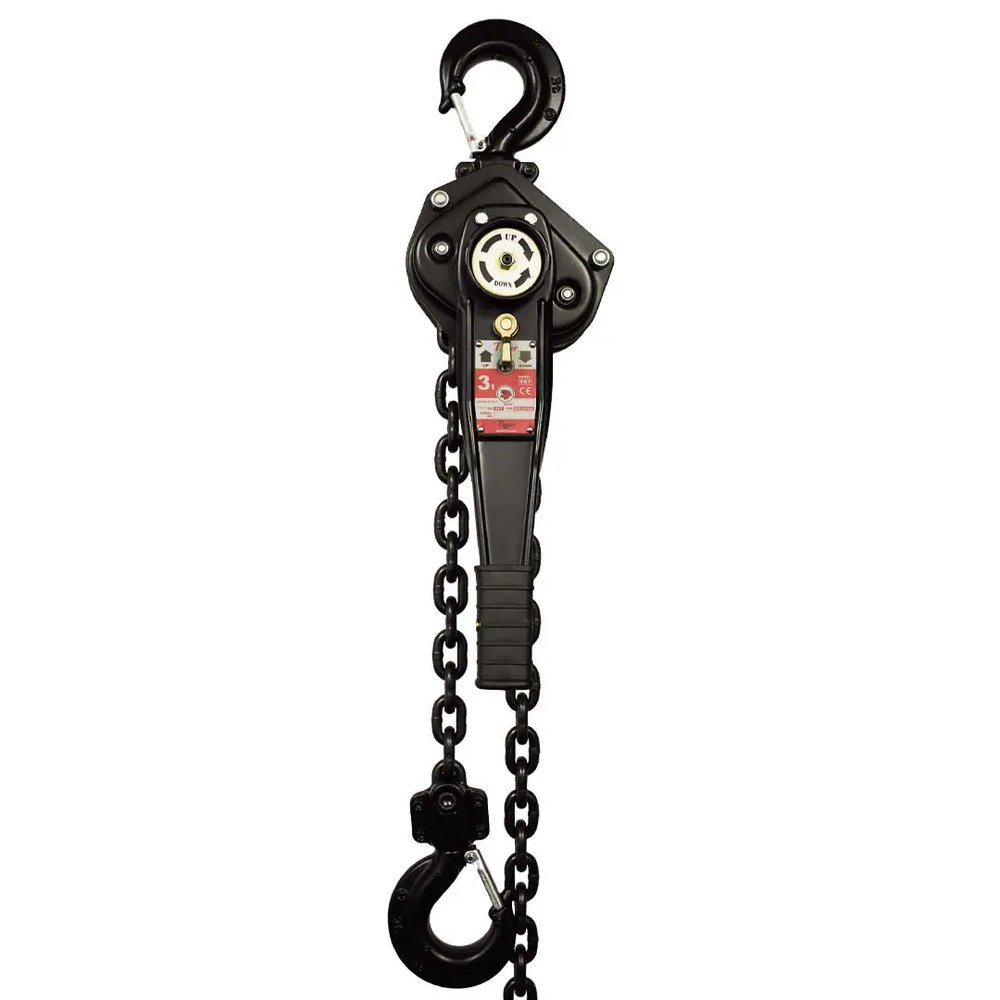

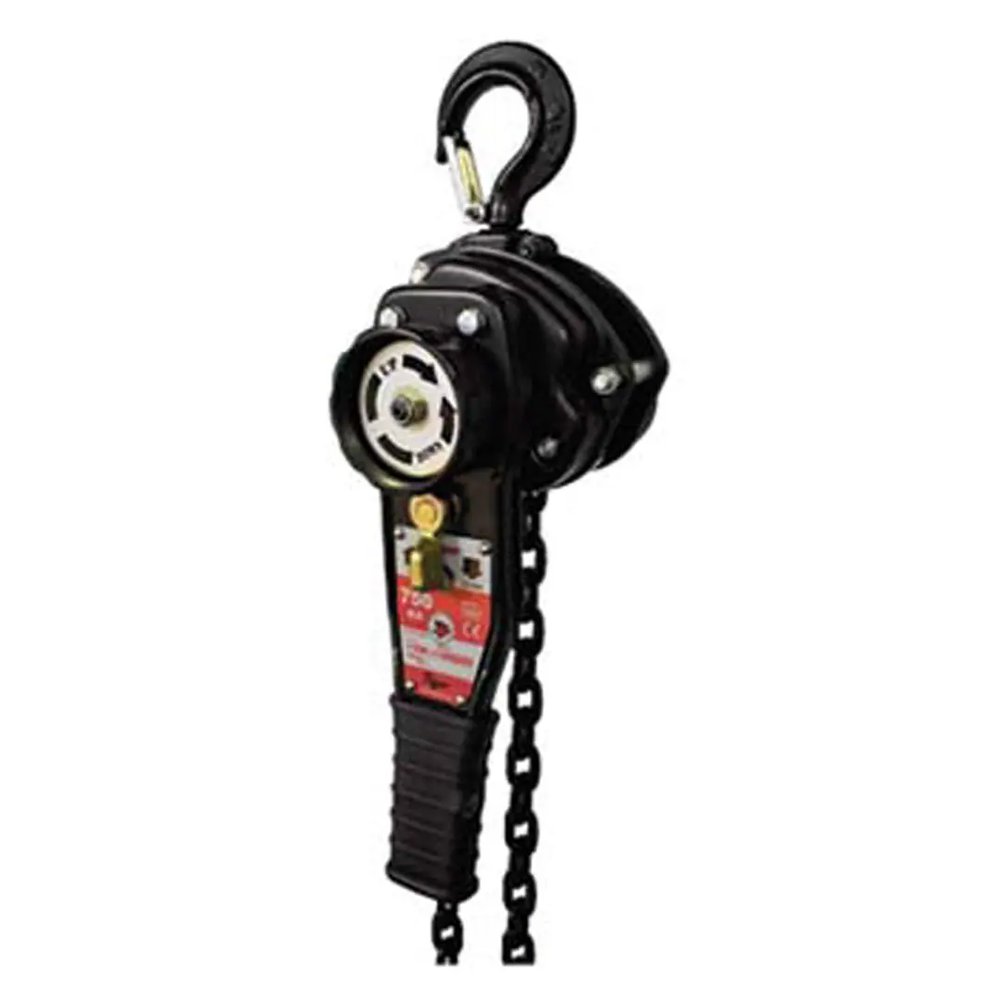

TR7 Industrial Lever Hoist

TR7 – Traditional Manufacturing, Robust and Reliable.

These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009, ANSI/ASME B30.21, AS1418.2 and SANS 1636.

Features

Range from 750kg – 6000kg
Meets or exceeds all international standards
High quality alloy calibrated load chain
360-degree handle rotation
Easy single-hand “freewheeling” operation
Rugged steel body construction
Drop forged & heat-treated alloy hooks
Proof tested to 1.5 times rated capacity
Heavy duty chain end stop
Lightweight and portable
Safe reliable twin pawl mechanical brake
Guaranteed light load protection
Short stroke and low lever pulling effort

Certification:

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. This document clearly states the proof test at 1.5 times the rated capacity and the light load test of 5% of the rated capacity, which exceeds the requirements of the current applicable standard.

Safety Brake:

The highly efficient twin pawl brake, works instantly when the operation is stopped and securely holds the load. Designed and 100% tested to hold a 5% load of the rated capacity. The bonded friction discs are free of asbestos and achieve highly efficient braking.

Load Chains:

Tiger only use the highest quality alloy, calibrated load chains in Grade T or V. Also available with stainless steel load chain.

Grease:

High performance premium quality grease allows the TR7 hoists to be certified for use within a temperature range of -40°C to +50°C far exceeding the requirements of current standards.

Mechanical Efficiency:

All major components are heat treated and precisely machined to ensure long term smooth operation. High gear ratios keep physical effort to a minimum.

Performance:

The TR7 lever hoist has undergone a full test program that includes:

Type Testing

Ultimate strength test, at least 4 times the Working load limit (WLL)
Chain end anchorage test, passing at least 4 times the WLL without any restriction of the brake or gears

Test on every hoist

Proof loading at 1.5 times the rated capacity
Light load testing at maximum of 2% rated capacity

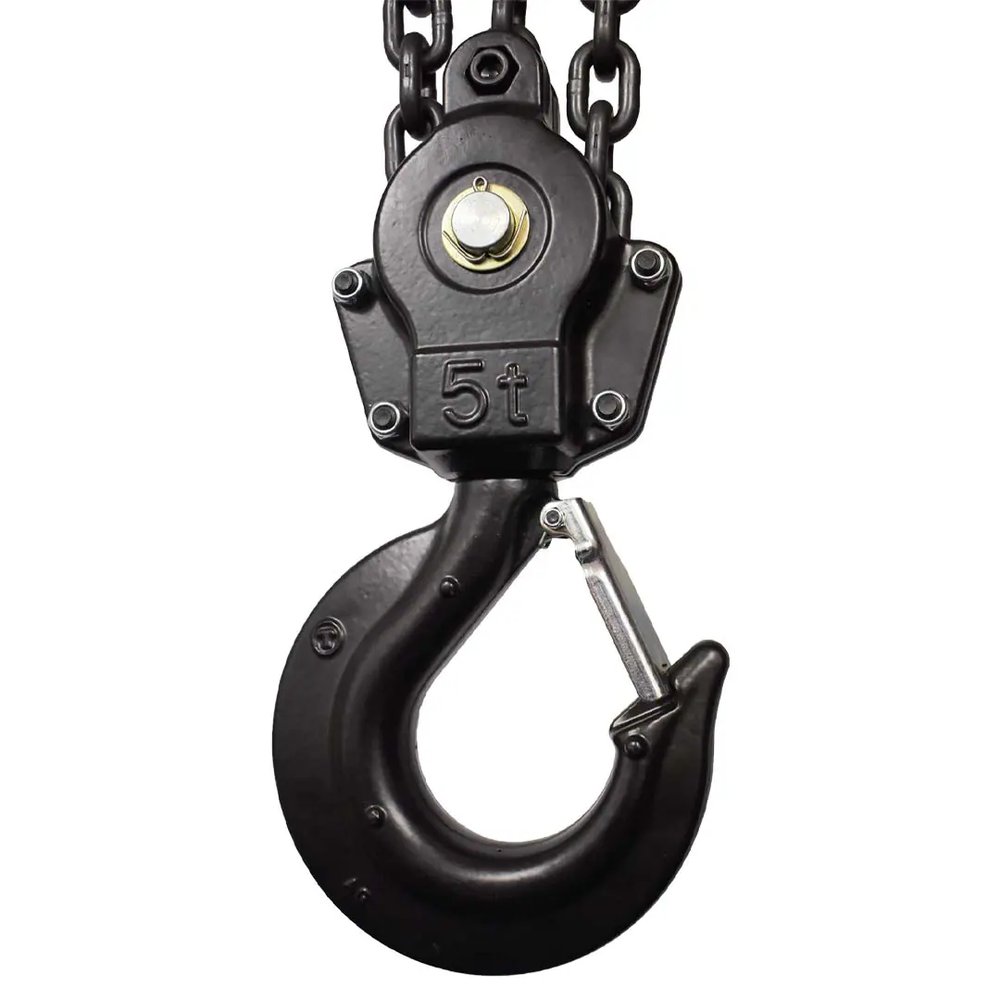

Hooks:

Our hooks incorporate our latest Patent Pending “EZ Check” feature which allows operators and inspection engineers to easily check to see if the hoist has been previously overloaded or shock loaded by simply measuring between the triangle of pop marks.

Our drop forged and heat treated alloy hooks are furnished with heavy duty spring latch kits that fully engage into the recessed nose of the hook safeguarding the load when side loading of the latch occurs and offering maximum load security. The swivel hooks are attached to the yoke using high grade nuts & bolts allowing for complete inspection during any statutory inspection or written scheme maintenance.

Available with hooks that swivel under the full working load limit, to meet relevant standards i.e. AS 1418.2. Also available with spark resistant hooks.

Forgings:

Recessed forgings offer full protection to the load chain anchor bolts on all our bottom hooks.

Finish:

The TR7 is finished in our high quality powder coat paint offering excellent corrosion protection.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.
