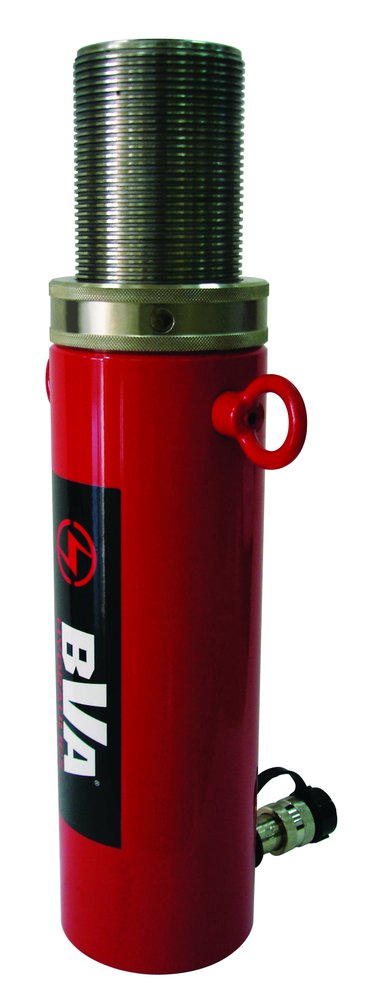

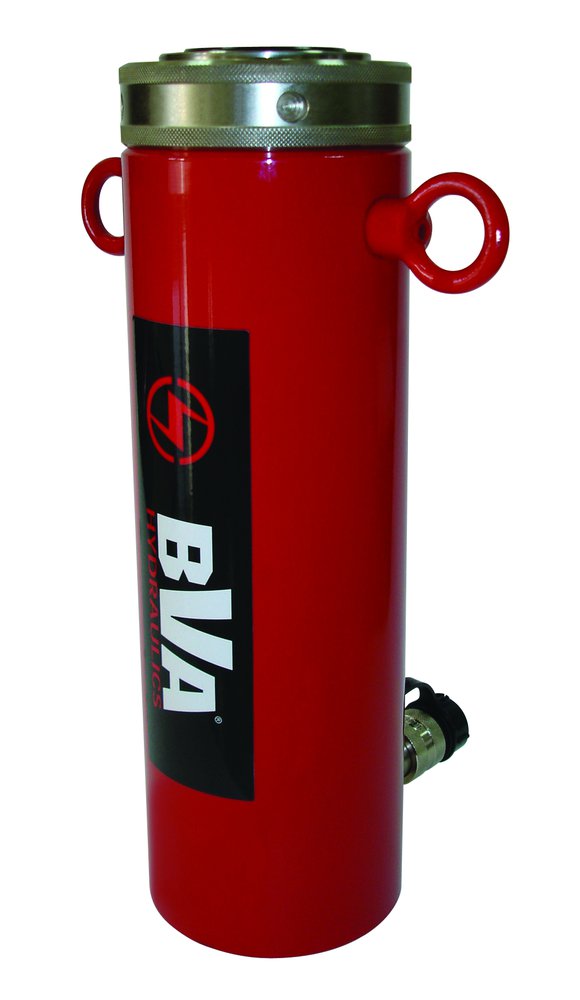

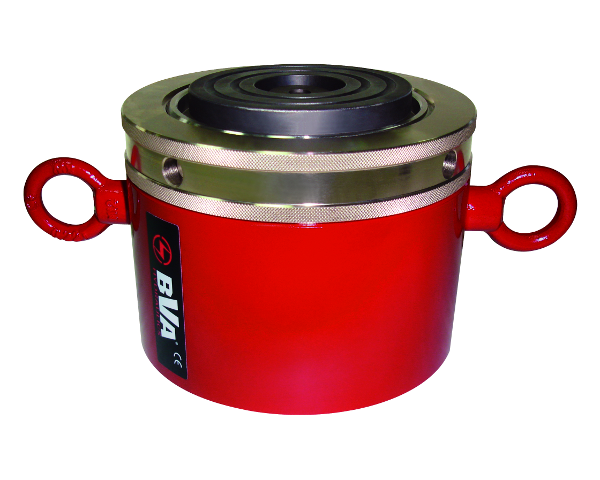

Single Acting, Lock Nut Cylinders

Offering the ability to support a load for a long period of time, the lock nut cylinder is a versatile piece of equipment. BVA Hydraulics can manufacture custom made high tonnage cylinders up to 1000 Tonne.
- Maximum working pressure 10,000 psi / 700 bar
- Capacity: 50 – 150 Tonne
- Stroke: 50 – 300mm
- Ram and inside housing are nickel plated to prevent rust and corrosion
- The lock nut can be adjusted at any point on the stroke of the cylinder to lock the load off
- Features two overflow ports in the support rings to avoid over extension of the ram
- Colour indicator to alert the operator of the maximum stroke level
