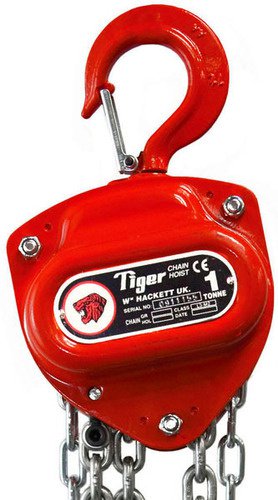

Tiger TCB11 Chain Block

The TCB11 is manufactured from the highest quality steel materials, offering a lightweight, compact and rugged construction, producing an exceptionally strong product resistant to impact damage. The exceptional short head room allows for easy installation where every centimetre must be achieved. Using only the highest quality materials precisely machined in our own factory, the TCB11 is the ideal block for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157:2004, ANSI/ASME B30.21-2005, AS1418.2 and SANS 1636.

Lifting at Angles
The TCB11 range of chain blocks has undergone a full and comprehensive testing regime that was drawn up by industry specialists and Tiger’s mechanical engineers to provide evidence that these units can be safely used for “fleeting” and “cross-hauling” applications. Note: All such operations should be carried out in accordance with manufacturer’s instructions and fully risk assessed by a competent person.

Main Features

Range from 500kg – 50te
Lightweight and portable
High quality alloy calibrated load chain
Heat treated alloy steel triple spur gears and pinion shaft
Can be chained to meet your exact requirements
Tested and certified for “fleeting” and “cross-hauling” applications
Meets or exceeds all international standards

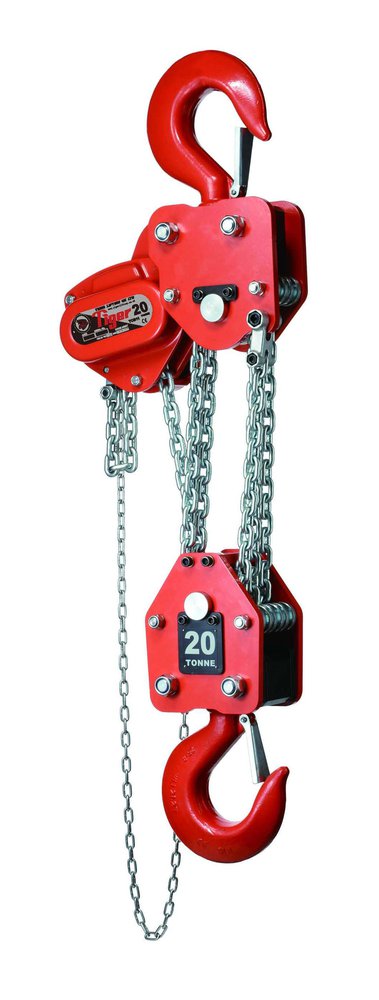

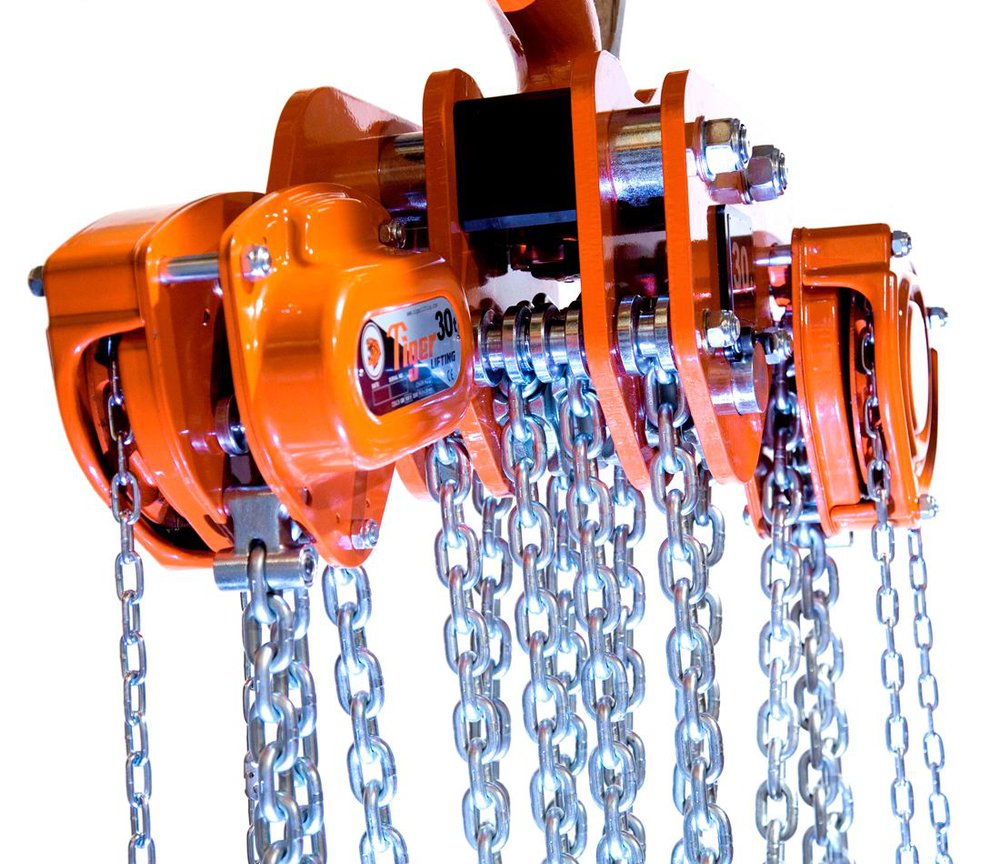

New 8t, 15t and 30t capacity units available
Double cover protection for brake chamber
Safe reliable twin pawl mechanical brake
Operating temperature of -40°C to +50°C
Individual spares readily available
Overload protection available
Rugged steel body construction
Drop forged & heat treated alloy hooks
Certified 2% light load protection
Proof tested to 1.5 times rated capacity
Suitable for underground mining use
Available with stainless steel load chain
